概述
Megapixel lens is essential to achieve high quality and full resolution of high definition cameras. Overall image quality is greatly affected by the quality of the optical lens. This lens provides high contrast, brightness and sharpness across the entire image plane. It is compact, CS mount, f1.4 apeture with manual Iris and varifocal from 3.5 to 10mm or 5 to 50mm, from very wide view angle to very narrow view angle. The manual Iris can be used to fine tuneing the illumination for best video quality. The outstanding performance makes the lens fit many different type camera applications.
Highlights
- 3 Megapixel designed for full HD camera
- CS Mount
- Up to zero object disance
- Variable focal length, Iris for fine tuning
- Durable metal barrel and mount
- Fixed apeture f1.4
規格
| Variflcaol Lens |
Pixels | 3 Mega |
| Focal Length(mm) | 3.5-10, 5-50 Other varifocal length range is optional |
|
| View Angle | 82.5º ~26.4º, 45º~5.5º | |
| Aperture | f1.4 | |
| Mount | CS | |
| Iris | Manual | |
| Focus | Manual | |
| Physical | Dimension(mm) | Φ32×39.3, Φ47×76.7 |
| Weight(g) | 48, 58 |
下載
訂單信息
| Item | P/N |

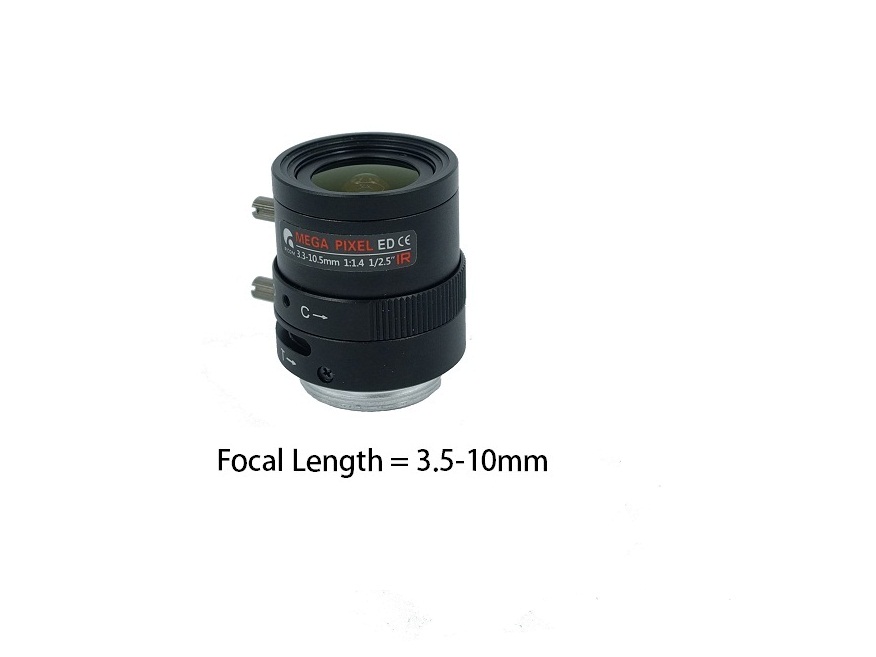

| Zoom CS Lens, focal length=3.5-10mm | 57029-310 |

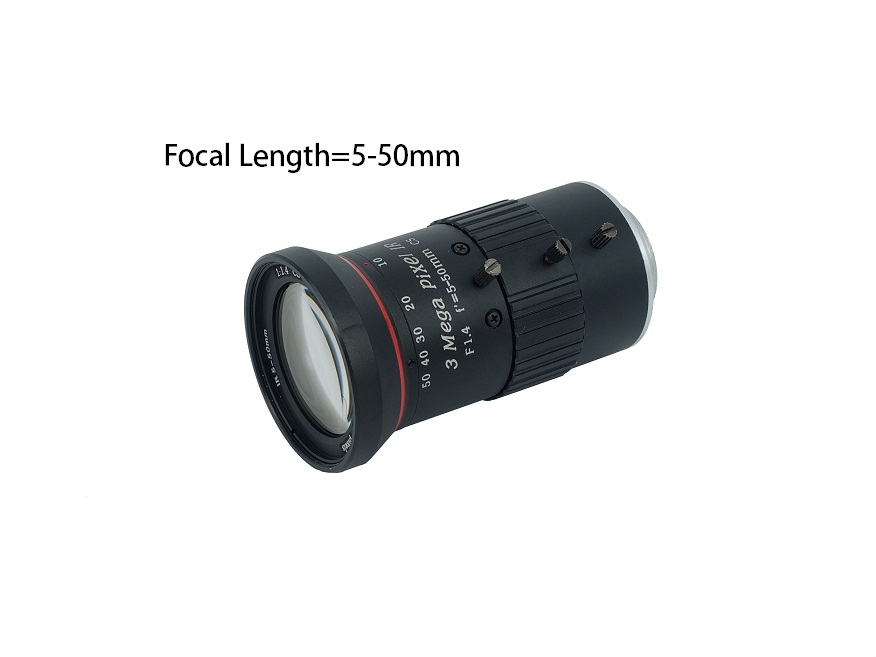

| Zoom CS Lens, focal length=5-50mm | 57029-550 |
| C/CS Mount Adapter Ring | 57039 |
