赛车视频录像机
概述

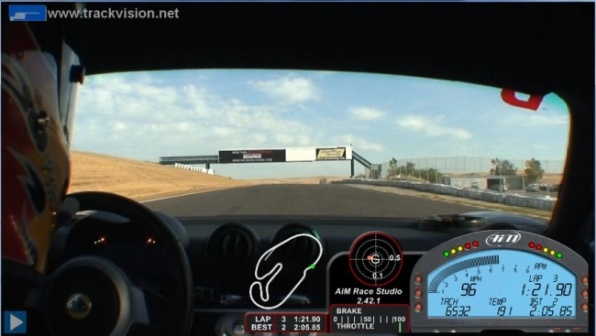

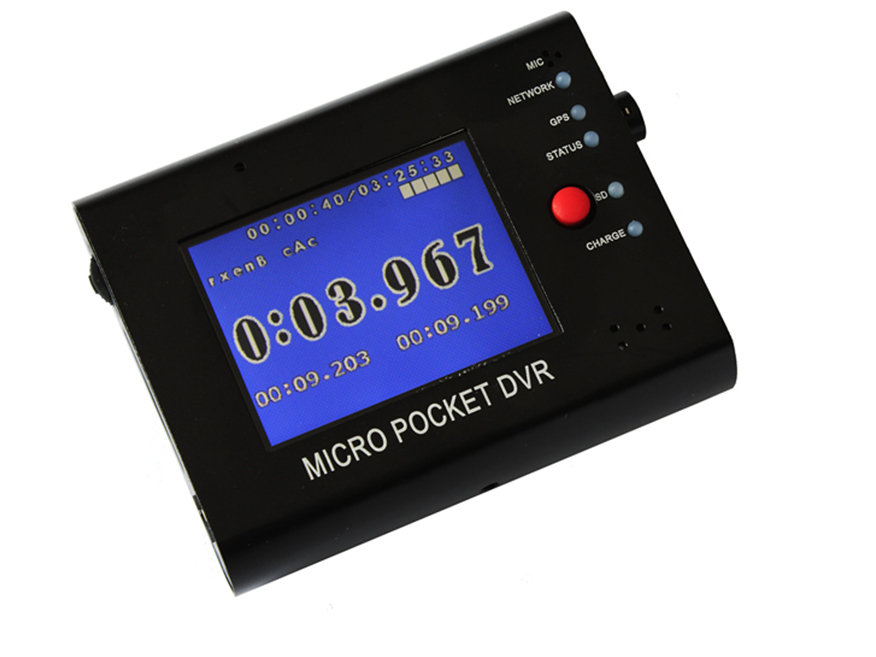

Video Lap Timer, it is a combination LapTimer and video recording and allows users to create videos including data overlay synconized. The recorded data can also be exported to TrackVision desktop software. It could be a smiple LapTimer to record lap information beased on External Beacon Receiver.
規格
| 电源 | 电源适配器 | 12VDC1A, 110-240VAC Adapter, UL/CSA/BS/VDE/SAA optional |
| 电池 | 1×3.7V Li-polymer rechargeable battery, 3500mAH | |
| 摄像头 | 12V 250mA output, 5-12V adjustable | |
| DVR | 12V 140mA | |
| 视频 | 视频编码 | H264/AVC Main Profile Level 3 |
| 分辨率 | PAL: 720×576-D1, >NTSC: 720×480-D1 | |
| 码率 | 600K-3Mbits/s, Three level adjustable | |
| 帧率 | PAL: 25fps, NTSC:30fps | |
| 录像质量 | EP/LP/SP | |
| 录像触发 | Button/LANC/LAN/Motion | |
| 标准 | PAL/NTSC/SECAM | |
| 图片 | Brightness, Contrast, Saturation adjustable | |
| 音频 | 采样率 | 48KHz |
| 编解码 | AAC | |
| 接口 | 远程控制 | IR, LANC, LAN |
| 按钮 | Record, Stop and directional push buttons | |
| 视频输入 | Lock connector. RCA, 1Vpp, 75ohm | |
| 视频输出 | RCA, 1Vpp, 75ohm | |
| 音频输入 | 3.5mm Jack, 2 Channel, Mono or Stereo | |
| 音频输出 | 3.5mm Jack, 2 Channel, Stereo | |
| 摄像头电源接口 | 5.5mm power jack | |
| DC 电源接口 | 4.2mm O.D. x 1.3mm I.D., DC Power Jack | |
| 电池 | 2MM Header | |
| 指示灯 | Multi-color LED | |
| LANC | 2.5mm LANC Jack | |
| 蜂鸣器 | Buzz, Motor Vibration optional | |
| LCD | 2.4″ TFT | |
| 以太网 | 10/100 Base-T | |
| 录像触发 | IR, LANC, button and LAN/Internet | |
| 存储 | SD 卡 | 512MB-32GB |
| 格式 | FAT32 | |
| 物理参数 | 尺寸 | 87x70x23.5mm |
| 重量 | 200g (with battery and SD) | |
| 系统 (Playback) | PC | Pentium III 800M/128M or higher with SD or card reader |
| Windows 2K/XP/Vista/7 |
下载
订单信息
| Item | P/N |
| Video Lap Timer | 30201-371 |
| Accessories | |
| Bullet Camera | |
| LANC Remote Control | |
| Accessories listed above are optional and sold separately | |
