变焦子弹头式CCD摄像头

概述

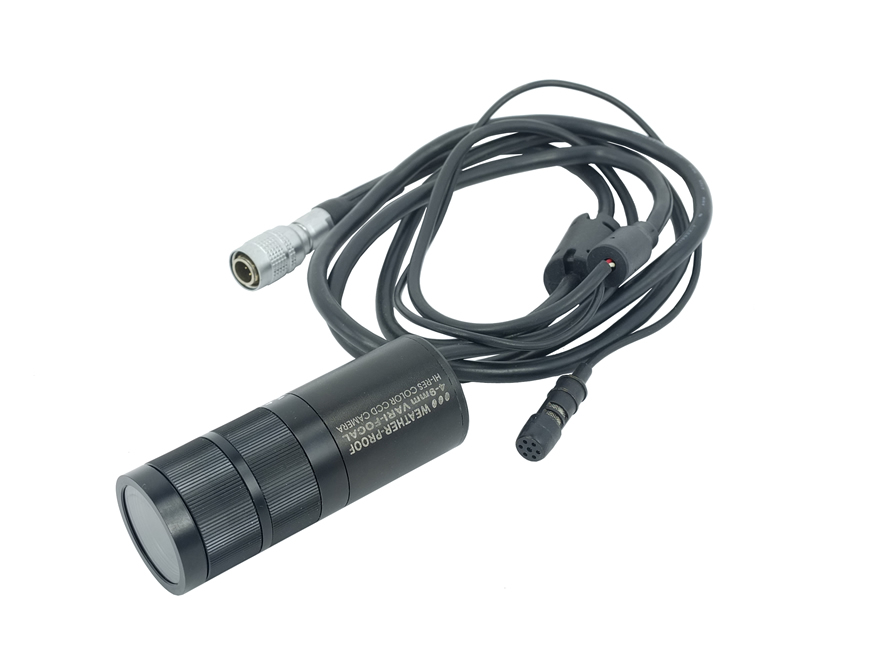

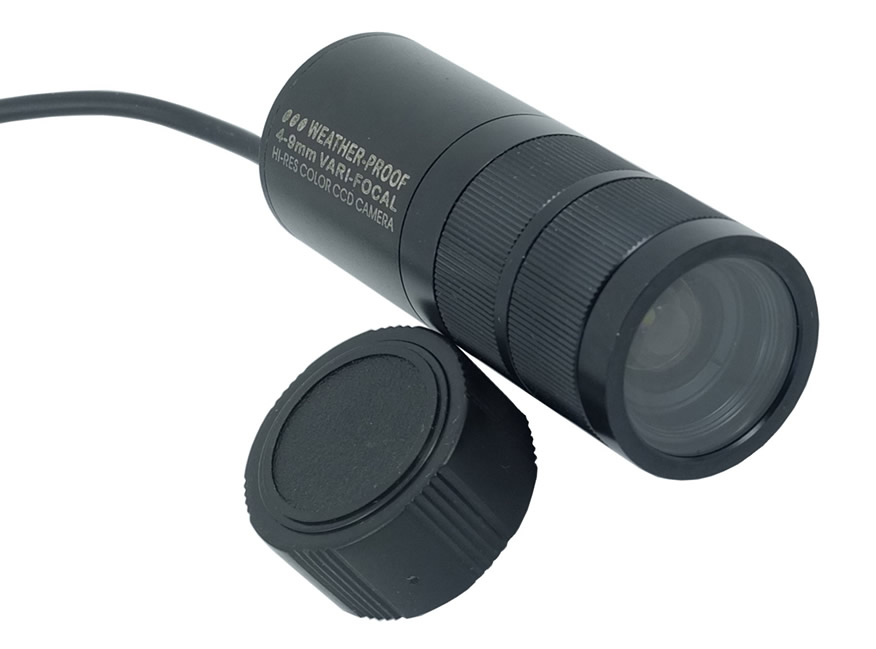

Varifocal Bullet Camera, it is a weatherproof bullet camera with 4-9mm varifocal lens.Sony CCD imaging sensor, which is fitted with a waterproof adjustable lens with optical zoom and focus, is used to deliver excellent quality and extreme good low light level performance. Zoom level is the equivalent of a 4mm lens up to a 9mm lens so you can get closer to your subject without having to stop and manually fit a different lens. The unique design gives you complete control and maintains a waterproof sealed integrity. This camera is not designed to be submerged.

Varifocal Bullet Camera has standard lock connector, microphone with collar clipm single cable connection without dangling cables anywhere, so Lock CAM jump cable is not required for Micro Pocket DVR application. It is weather resistant housing for outdoor use, setup ready with integrated microphone. No extra cabling needed, perfect lengths for all cables, spot-on video and sound location, fast and simple setup without hassle. Customized cable length and stereo microphone is optional for volume orders.

規格


Optical Image Device 1/3″ Sony CCD
Minimum Illumination 0.5Lux
Built-In Lens F4-9mm lens, weather proof
Video Number Pixel PAL: (H)768x(V)582
NTSC: (H)778x(V)492
Scanning system PAL/NTSC
Horizontal Resolution 520TV Lines
Video Out 1Vpp 75ohm Negative
White Balance Auto
S/N >48db
Electronic Shutter PAL: 1/50~1/100,000s
NTSC: 1/60~1/100,000s
Microphone (For lock only) Sensitivity -58db
Impedances 2.2Kohm
Directivity Omni directional
Frequency 20-16,000Hz
Operation Voltage 2V
Current 0.5mA
S/N 58db
Interface Video 6pin proprietary Lock Connector, 1Vpp, 75ohm, RCA is an option*
Audio 6pin proprietary Lock, Mono
Power 6pin proprietary Lock, 12VDC +/- 10%, 60mA 5.5mm DC Jack is an option*
Environment Storage Temperature -20°C ~ +60°C
Operating Temperature -10°C ~ +50°C
Physical Length 120cm for lock connector, 65cm for RCA option
Dimension ø26mm

下載


訂單信息

Item P/N
Varifocal Bullet Camera (NTSC) 70002-050
Varifocal Bullet Camera (PAL) 70002-051
Varifocal Bullet Camera (NTSC) with Lock 70002-150
Varifocal Bullet Camera (PAL) with Lock 70002-151
Varifocal Bullet Camera (PAL) with Lock, LANC & MIC 70002-251
Varifocal Bullet Camera (PAL) with Lock, LANC & MIC 70002-251
