通用电源适配器
概述

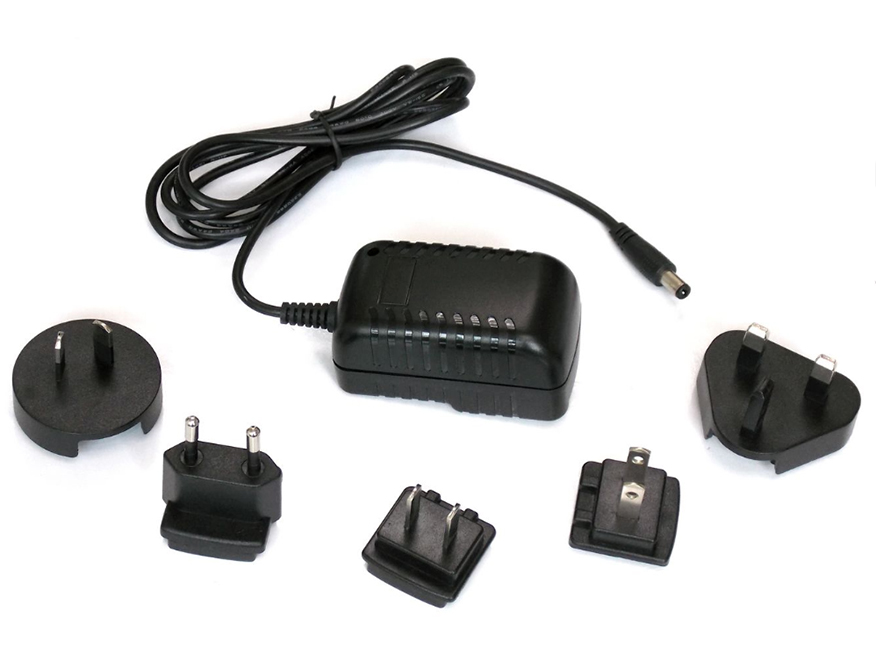

Standard small size Wall AC/DC switching mode power adapter with over voltage, over current, short circuit protection and LED inidicatior provides 12Watts of continous output power.
規格
| Input | Voltage | 100-240VAC 50/60Hz |
| Power | 24W | |
| Safey approvals: | CE, UL/CSA, TUV, CCC, PSE, EK | |
| Output | Voltage | +12V DC |
| Current | 2A DC | |
| Connector | 3.5MM O.D./1.35MM I.D., Right Angle | |
| Environment | Storage Temperature | -20°C ~ +80°C |
| Operating Temperature | 0°C ~ +40°C | |
| Physical | Dimension | 83.38×39.52×43.5mm |
下載
訂單信息
| Item | P/N |
| Universal Power Adapter US | 55902-210 |
| Universal Power Adapter AU | 55902-410 |
| Universal Power Adapter EU | 55902-610 |
| Universal Power Adapter UK | 55902-810 |
