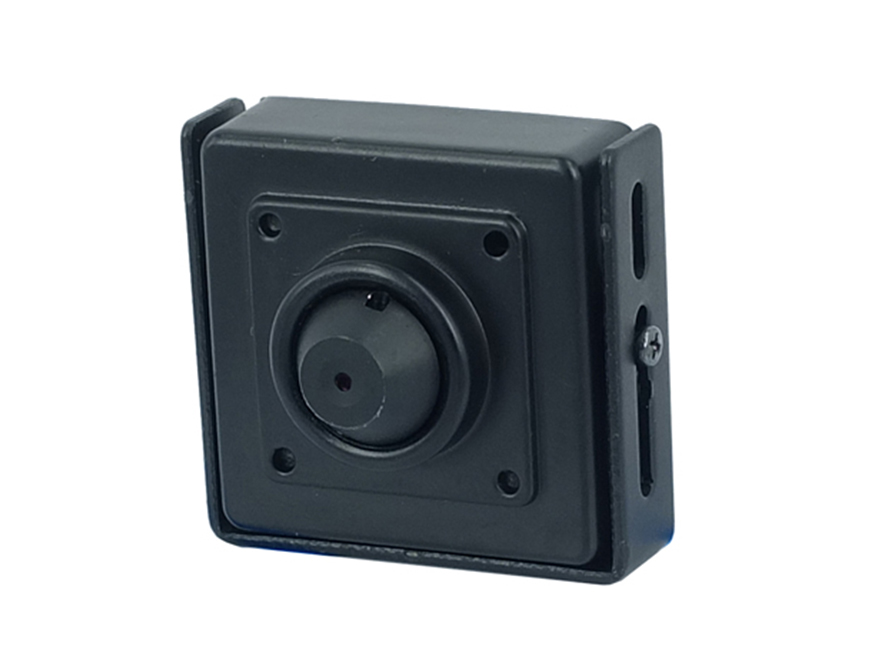

微型针孔CCD摄像头
概述
Miniature Pinhole CCD Camera with Internal MIC, it has standard IRIS connector so IRIS-RCA jump cable is not required for Pocket DVR application.
規格
Optical | Image Device | 1/3″ Sony CCD |
| Minimum Illumination | 0.5Lux | |
| Built-In Lens | F3.7mm board pinhole lens | |
Video | Number Pixel | PAL: (H)500x(V)582 |
NTSC: (H)510x(V)492 | ||
| Scanning system | PAL/NTSC | |
| Horizontal Resolution | 420TV Lines | |
| Video Out | 1Vpp 75ohm Negative | |
| White Balance | Auto | |
| S/N | 48db | |
| Electronic Shutter | PAL: 1/50~1/100,000s | |
NTSC: 1/60~1/100,000s | ||
Interface | Video Out | IRIS , 1Vpp, 75ohm, RCA is an option |
| Audio Out | IRIS, RCA is an option | |
| Power | IRIS, 12VDC +/- 10%, 100mA | |
Environment | Storage Temperature | -20°C ~ +60°C |
| Operating Temperature | -10°C ~ +50°C | |
Physical | Dimension | 42mmx42mmx34mm |
下載
訂單信息
| Item | P/N |
| Mini Pinhole Camera (NTSC) | 70010-050 |
| Mini Pinhole Camera (PAL) | 70010-051 |
