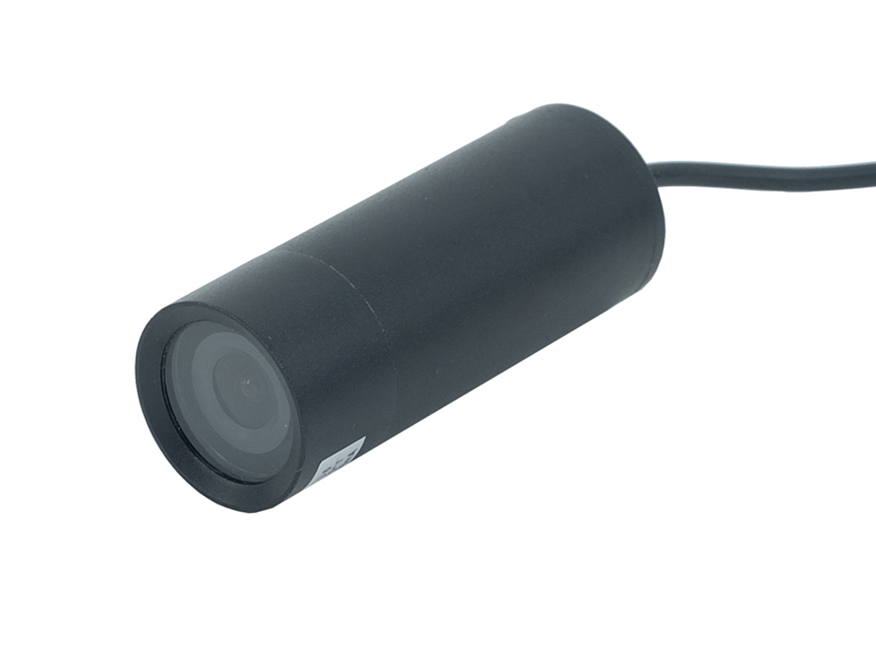

子弹头CCD摄像头

概述


Bullet CCD Camera is best for mobile DVR applications. It is weather resistant housing for outdoor use, high contast, high brightness.

規格


Optical Image Device 1/3″ Sony CCD
Minimum Illumination 0.5Lux
Built-In Lens F3.6mm board lens, weather proof
Video Number Pixel PAL: (H)500x(V)582
NTSC: (H)510x(V)492
Scanning system PAL/NTSC
Horizontal Resolution 520TV Lines
Video Out 1Vpp 75ohm Negative
White Balance Auto
S/N >48db
Electronic Shutter PAL: 1/50~1/100,000s
NTSC: 1/60~1/100,000s
Interface Video Out RCA, 1Vpp, 75ohm
Power 5.5mm Jack, 12VDC +/- 10%, 100mA
Environment Storage Temperature -20°C ~ +60°C
Operating Temperature -10°C ~ +50°C
Physical Dimension ø22x77mm

下載


訂單信息


Item P/N
Bullet CCD Camera (NTSC) 70000-050
Bullet CCD Camera (PAL) 70000-051
