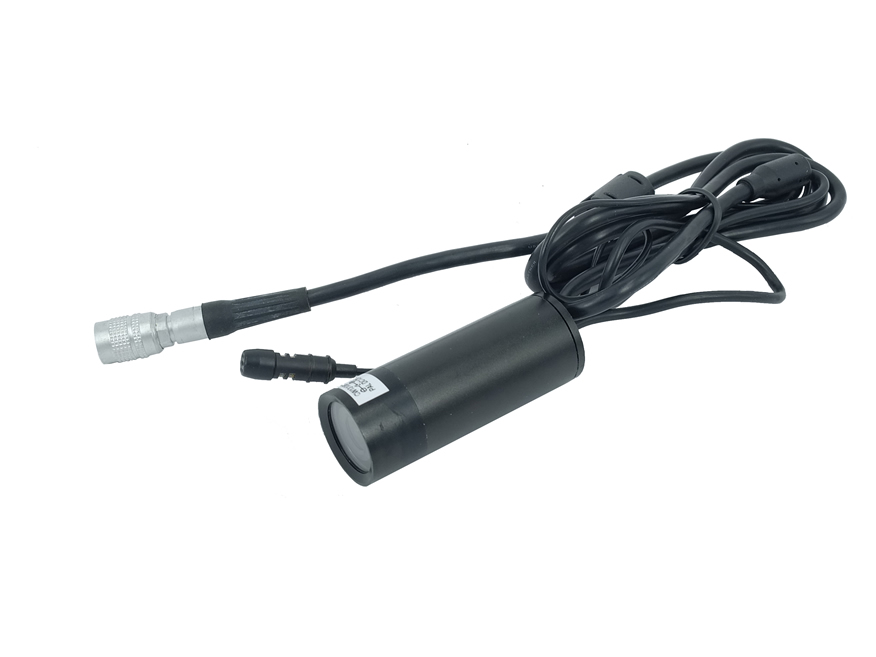

子弹头式CCD摄像头（带麦克风）
概述
Bullet CCD Camera is best for mobile DVR applications. It has standard lock connector, microphone with collar clip, single cable connection without dangling cables anywhere, so Lock CAM jump cable is not required for Micro Pocket DVR application. It is weather resistant housing for outdoor use, setup ready with integrated microphone. No extra cabling needed, perfect lengths for all cables, spot-on video and sound location, fast and simple setup without hassle. Customized cable length and stereo microphone is optional for volume orders.
規格
|
Optical
|
Image Device | 1/3″ Sony Super HAD CCD II |
| Minimum Illumination | 0.1Lux /F2.0 | |
| Built-In Lens |
F3.6mm board lens, weather proof Optional: 2.5 ,2.8, 4, 6, 8, 12, 16, 30, 60mm |
|
|
Video
|
Number Pixel |
PAL: (H)752x(V)582 |
|
NTSC: (H)768x(V)494 |
||
| Scanning system | PAL/NTSC | |
| Horizontal Resolution | 540TV Lines | |
| Video Out | 1Vpp 75ohm Negative | |
| White Balance | Auto | |
| S/N | 48db | |
| Electronic Shutter |
PAL: 1/50~1/110,000s |
|
|
NTSC: 1/60~1/100,000s |
||
|
Microphone |
Sensitivity |
-58db |
| Impedances | 2.2Kohm | |
| Directivity | Omni directional | |
| Frequency | 20-16,000Hz | |
| Operation Voltage | 2V | |
| Current | 0.5mA | |
| S/N |
58db |
|
|
Interface
|
Video |
6pin proprietary Lock Connector, 1Vpp, 75ohm, |
| Audio |
6pin proprietary Lock, Mono |
|
| Power |
5-12VDC +/- 10%, 60mA @12V, 140mA@5V |
|
|
Environment
|
Storage Temperature | -20°C ~ +60°C |
| Operating Temperature | -10°C ~ +50°C | |
|
Physical
|
Length | 120cm for lock connector, 65cm for RCA option |
| Dimension | ø20x80mm |
下載
訂單信息
| Item | P/N |
| Bullet Camera (NTSC) | 70000-050 |
| Bullet Camera (PAL) | 70000-051 |
| Bullet Camera (NTSC) with Lock Connector | 70001-150 |
| Bullet Camera (PAL) with Lock Connector | 70001-151 |
| Bullet Camera (PAL) with Lock Connector, LANC & MIC | 70001-251 |
| Bullet Camera (PAL) with Lock Connector, LANC & MIC | 70001-251 |
